MIMIC: Sample 2000 node Network

  1. Table of Contents

  2. Overview

    3. This heterogeneous network represents a current, multi-vendor, multi-function, multi-site 2000 node environment containing many features to be managed. It was created with Topology Wizard just like in this 3-minute Youtube video.

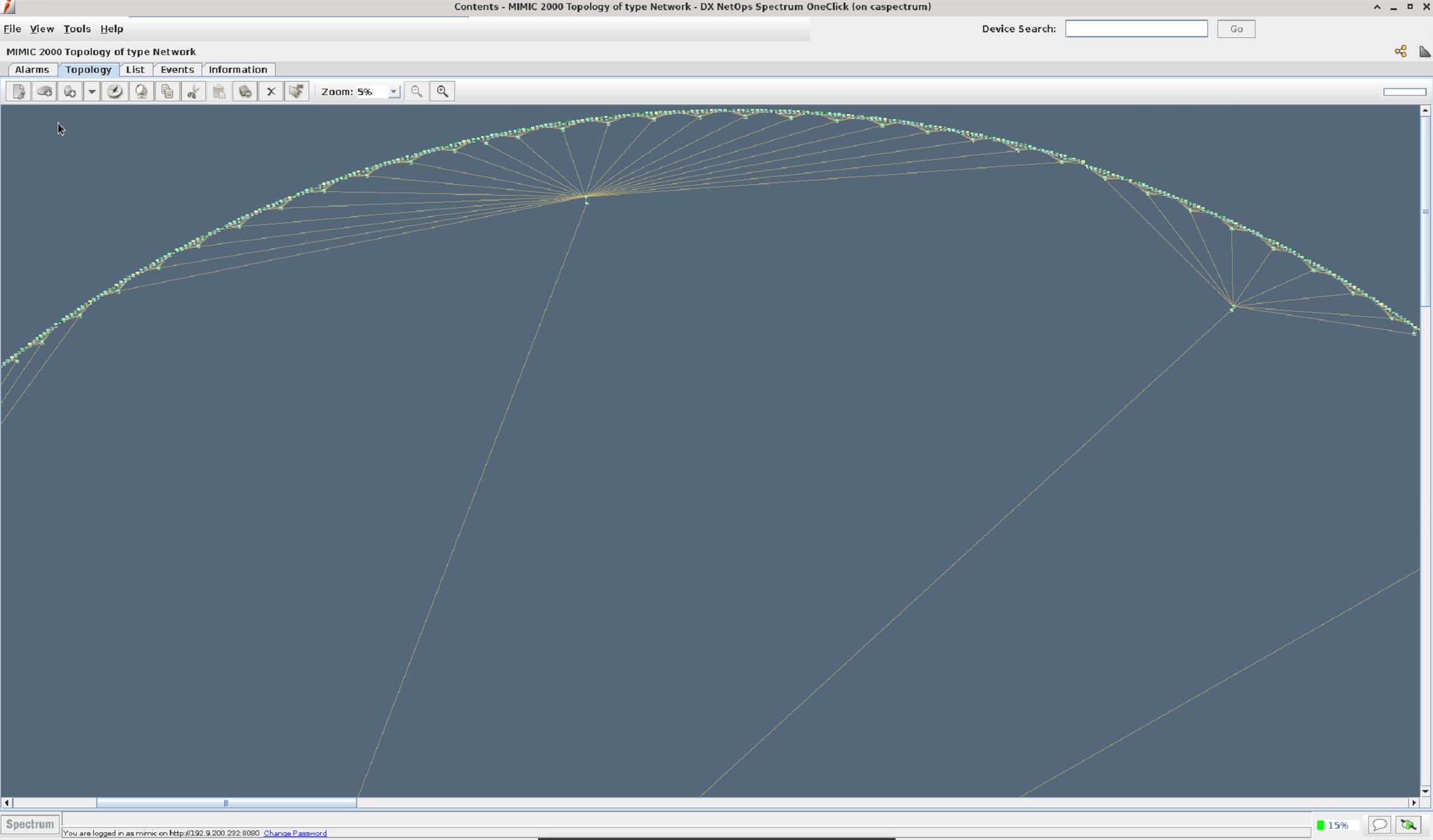

    Here is the network as discovered by CA Spectrum:

    TBD

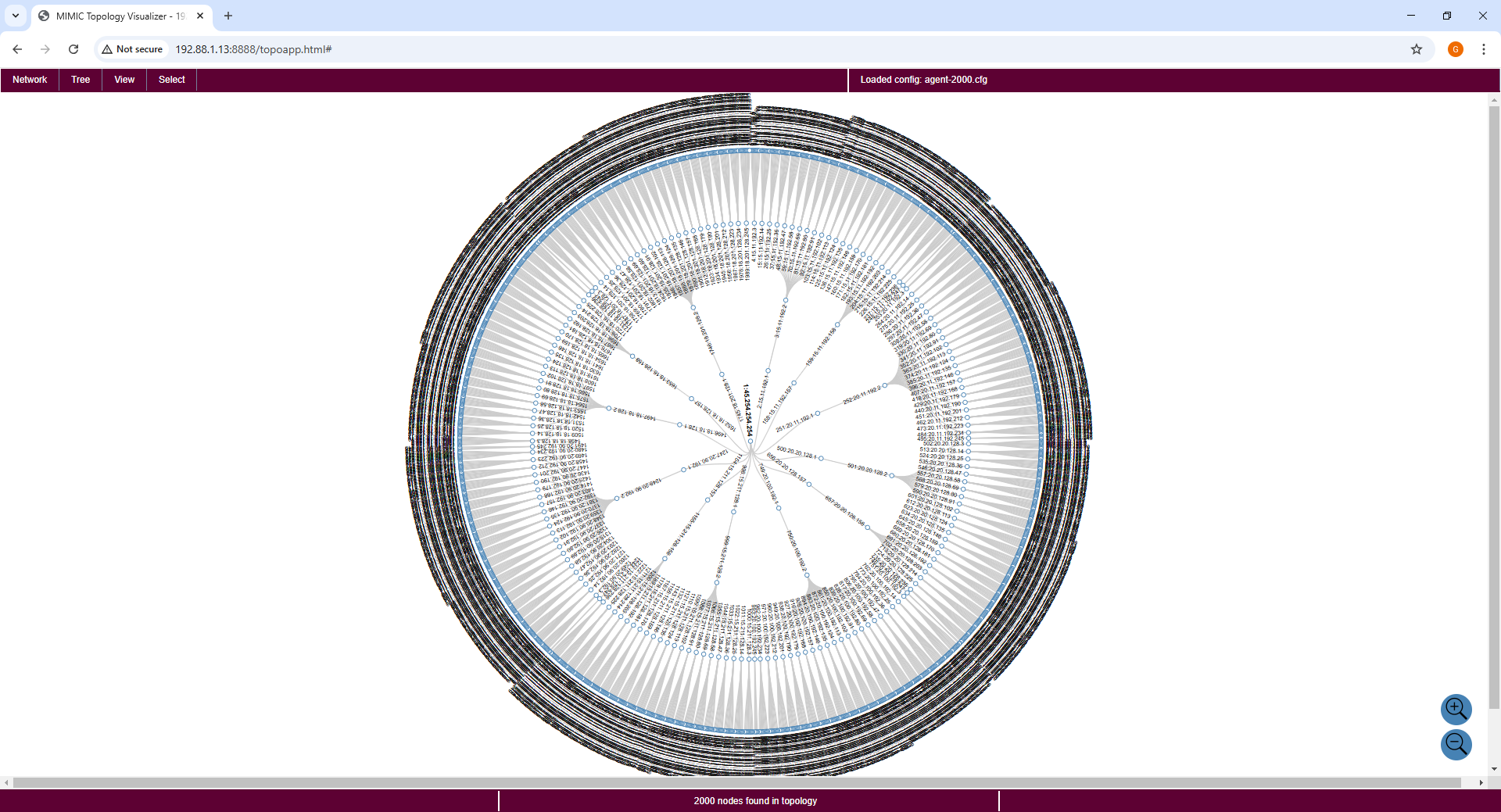

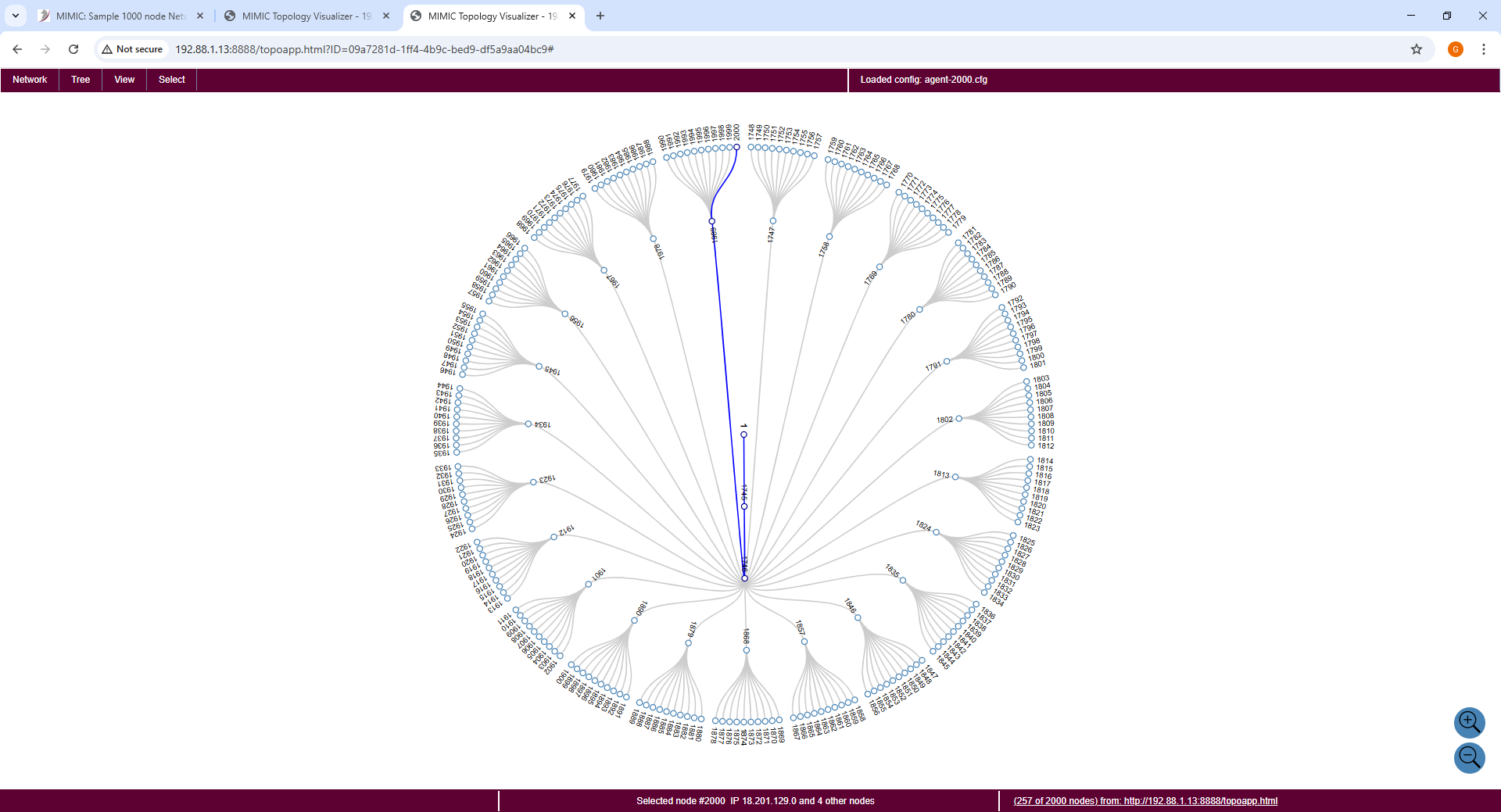

    and the MIMIC Topology Visualizer:

    MIMIC Topology Visualizer

    MIMIC Topology Visualizer

  3. Prerequisites

    4. To run this simulation, you must have at least 2000 agent capacity in your MIMIC license.

  4. Installation

    5. Install this package using Update Wizard in section Network Library, package name Sample 2000 node Network.

  5. Usage

    6. After installing this package with Update Wizard, invoke the File->Open menu from the MIMICView GUI, and select the agent-2000.cfg.

    Once you start them, the agents will run at the configured addresses in the 45.x.x.x, 20.x.x.x and 15.x.x.x networks. The topology is built dynamically, so it will take a while before all MIB objects have settled, as logged in the MIMIC log with TOPO_DONE.

  6. Compatibility

    7. We have interoperated with the management platforms above.
